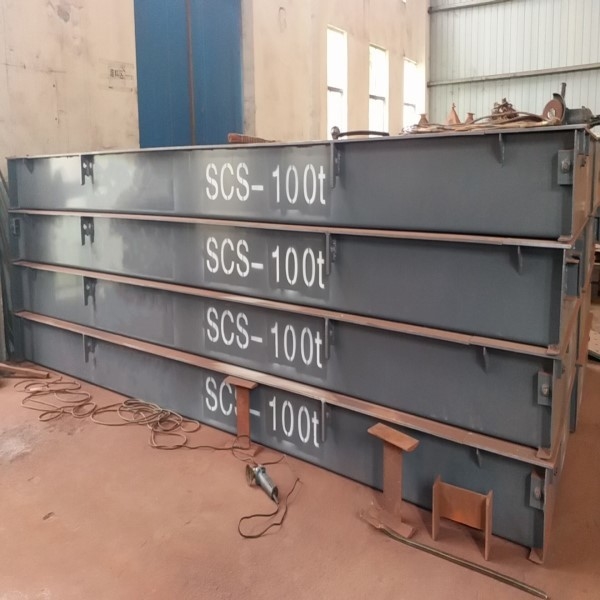

SCS-100t Truck Scale High Precision Weighing System for Efficient Load Measurement

SCS-100t Truck Scale High Precision Weighing System for Efficient Load Measurement
SCS-100t Truck Scale High Precision Weighing System for Efficient Load Measurement

Large Image :  SCS-100t Truck Scale High Precision Weighing System for Efficient Load Measurement

Product Details:
Place of Origin: China
Brand Name: uwhoi
Certification: ISO9001:2015
Model Number: SCS
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: USD5000~USD20000/SET
Packaging Details: The body of truck scale is nude packed and the accessories part are packed in wooden case
Delivery Time: within 2 weeks after payment
Payment Terms: 30% T/T in advance
Supply Ability: 100sets/month
Contact Now

SCS-100t Truck Scale High Precision Weighing System for Efficient Load Measurement

Description

China Truck Scale Product Description:

  1. Weighing gross weight, net weight, and tare digital display and zero indication, overload indication, etc.
  2. Has the self-check, automatic zero tracking, digital filter, keyboard correction and function parameters set.
  3. Input truck number, and cargo number, have the management function of truck number, vehicles can be staggered weighing; can store 500 truck numbers for tare, gross weight, article 1200 weighing records; Can be printed weighing 1 ~ 8 bills with the date, time, serial number, truck number, material number, gross weight, tare weight, net weight. Details please see the weighing instrument specification.SCS-100t Truck Scale High Precision Weighing System for Efficient Load Measurement 0
  4. Weighing meter’s output has interface standard parallel interface, RS 232 interface; Parallel interface can be connected with external industrial general printer EPSON LQ-300 K, Panasonic KX-P1131, DeShi DS-300, and OKI-5340C, etc ; RS 232 serial interface, large screen serial interface.
  5. Scale body for steel made excellent platform modules structure which is good for transportation, easy installation, lower cost basis foundation.
  6. Employed advanced digital load cells to get excellent weighing performances.
  7. Scale foundation construction is simple, low cost, easy installation, debugging easier.
  8. System operation is convenient, simple maintenance.

China Truck Scale Model Selection Guide (OIML III)

Series



Parameter

 SCS-20 SCS-30 SCS-40 SCS-50 SCS-60 SCS-80 SCS-100 SCS-120 SCS-150
Rated load(t) 20 30 40 50 60 80 100 120 150
Division d(kg)



Division e(kg)

 5,10



10

 5,10



10

 10,20



20

 10,20



20

 20



20

 20



20

 20,50



20,50

 20,50



20,50

 50



50
Load cell×number 20t×4 20t×4/6 20t×4/6



25t×4/6

 25t×4/6



30t×4/6

 25t×4/6



30t×4/6

 30t×4/6 30t or 40t×4/6/8/10/12

30,40,50t×

4/6/8/10/12/…

40,50t×

4/6/8/10/12/14/…
Size



(length × width)

 Length:7,8,9,10,12,14,16,18,20,22,24,30,36,38.5 meters, etc..



Width:3, 3.2, 3.4, 3.8, 4.0 meters, etc..

Platform size can be customized!

length≤7m,generally adopt 1 platform/4 load cells；

8～12m,adopt two platforms,6 load cells;

14～18m,adopt 3 platforms,8 load cells;

16～24m,adopt 4 platforms,10 load cells;

25～30m,adopt 5 platforms,12 load cells;

The platform lengths: 3, 4, 4.5, 5.0, 5.5, 6.0m,7.0 etc..
Weighing indicator FS3198-A2, XK3190-A9 for analog load cells,



XK 3190-DS8,D10, D2008F for digital load cells etc..
Printer EPSON LQ-300KH, LQ-615KⅡ, LQ-630KⅡ,optional.
Temperature(℃) -10℃～＋40℃ for weighing meter, -10℃～＋60℃ for loadcell.
Power Source AC220V±10% /50Hz,or tailored power source.
Computer system(optional parts) above 586 computer,weighing management software under Microsoft Windows system Win 7 or Win 10.

( Note: the electronic truck scale of lightning preventions are an optional work system, they should be completed by user. )

Standard lengths of truck scales are as follow:

SCS-100t Truck Scale High Precision Weighing System for Efficient Load Measurement 1

Truck Scale Foundation Consideration:
