10-Ton UWI Wheel Loader Scales Real Time Data Monitoring System

.

Installation&Connection
6.1 Installation

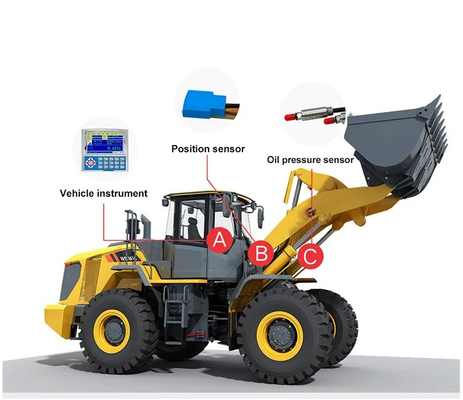

6.1.1 Structure of Shovel Loader
1: Bucket;
2: Lift-arm;
3: Arm-lifting Oil Cylinder;
4: Oil Connecting Port of Upper Oil Chamber;
5: Oil Connecting Port of Lower Oil Chamber.
Related Operation Terms:

ARM-UP: Lift the lift-arm so that the bucket rises.

ARM-DOWN: Put the lift-arm down so that the bucket goes down to the lowest position.

BUCKET-UP: Flip the bucket upward to the limit position.

BUCKET-DOWN: Flip the bucket downward.

DISCHARGE: Flip the bucket downward for discharging materials.

SHOVEL: Shovel materials into the bucket.
