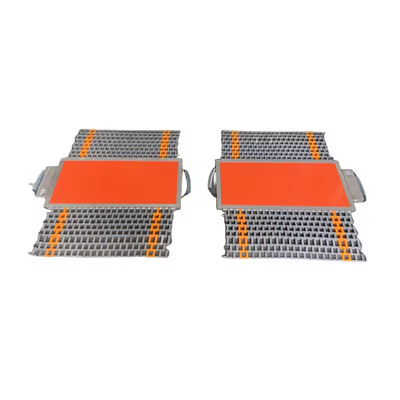

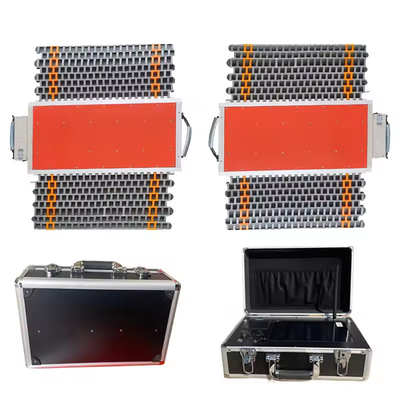

Wheel Moveable Axle Load Truck Scale Axle Weighbridge Portable Weighing Scale For Trucks

Wheel Moveable Axle Load Truck Scale Axle Weighbridge Portable Weighing Scale For Trucks
Wheel Moveable Axle Load Truck Scale Axle Weighbridge Portable Weighing Scale For Trucks Wheel Moveable Axle Load Truck Scale Axle Weighbridge Portable Weighing Scale For Trucks Wheel Moveable Axle Load Truck Scale Axle Weighbridge Portable Weighing Scale For Trucks

Large Image :  Wheel Moveable Axle Load Truck Scale Axle Weighbridge Portable Weighing Scale For Trucks

Product Details: Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: USD5000~USD20000/SET
Packaging Details: The body of truck scale is nude packed and the accessories part are packed in wooden case
Delivery Time: within 2 weeks after payment
Payment Terms: 30% T/T in advance
Supply Ability: 100sets/month
Contact Now

Wheel Moveable Axle Load Truck Scale Axle Weighbridge Portable Weighing Scale For Trucks

Description
Type: Axle Scale Power Supply: DC 12V Lithium Battery
Display Type: Touch Screen Material: Stainless Steel/Plastic Glue Board
Bench Size: 800*440mm Transmission Distance: 100m

Products Description

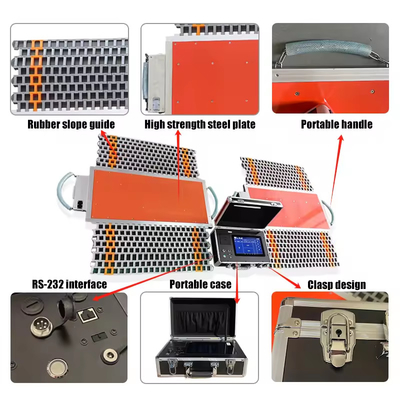

The Weighing Axle Load Meter is composed of high strength steel plate and two rubber slope, dual channel design, high precision integral weighing platen with high detection accuracy. The indicator uses 10.1 inch Android touch screen, which is input by touch mode, and has
technical support such as statistical analysis and database. Equipped with high speed printer, can print time, date, car number and other information.

Product Paramenters

Product Name
Portable Axle Load Meter
Model
BH-ALM
Axle load plate

Bench size
800*440mm
Standby time
48h
Transmission distance
100m
Dynamic error
±1%-3%F.S
Static accuracy
0.5%F.S
Radio frequency
915MHz
Applicable environment
-20℃-+80℃
Specification
2 Pads
Class of protection
IP65
Sensor

Rated load of each pad
20t
Sensitivity
0.5±0.2mV/V
Comprehensive accuracy
±0.2%F.S
Zero equilibrium
±1%F.S
Compensation temperature range
-10℃-+50℃
Operating temperature range
-10℃-+50℃
Safety load
120%F.S
Ultimate load
150%F.S
Recommended excitation voltage
5-12V
Class of protection
IP66



Wheel Moveable Axle Load Truck Scale Axle Weighbridge Portable Weighing Scale For Trucks 0

Wheel Moveable Axle Load Truck Scale Axle Weighbridge Portable Weighing Scale For Trucks 1Wheel Moveable Axle Load Truck Scale Axle Weighbridge Portable Weighing Scale For Trucks 2Wheel Moveable Axle Load Truck Scale Axle Weighbridge Portable Weighing Scale For Trucks 3
