Product Details:
Payment & Shipping Terms:
|
Type: | Axle Scale | Power Supply: | DC 12V Lithium Battery |
---|---|---|---|
Display Type: | Touch Screen | Material: | Stainless Steel/Plastic Glue Board |
Bench Size: | 800*440mm | Transmission Distance: | 100m |
Product Name
|

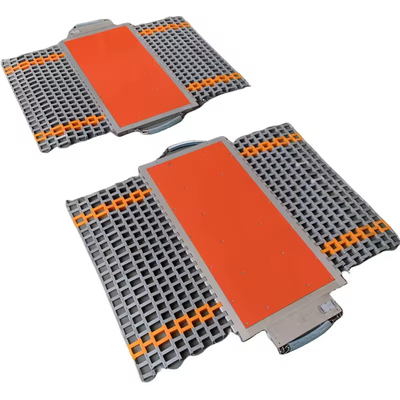

Portable Axle Load Meter
|
|||
Model
|
BH-ALM
|
|||
Axle load plate
|
|
|||
Bench size
|
800*440mm
|
|||
Standby time
|
48h
|
|||
Transmission distance
|
100m
|
|||
Dynamic error
|
±1%-3%F.S
|
|||
Static accuracy
|
0.5%F.S
|
|||
Radio frequency
|
915MHz
|
|||
Applicable environment
|
-20℃-+80℃
|
|||
Specification
|
2 Pads
|
|||
Class of protection
|
IP65
|
|||
Sensor
|
|
|||
Rated load of each pad
|
20t
|
|||
Sensitivity
|
0.5±0.2mV/V
|
|||
Comprehensive accuracy
|
±0.2%F.S
|
|||
Zero equilibrium
|
±1%F.S
|
|||
Compensation temperature range
|
-10℃-+50℃
|
|||
Operating temperature range
|
-10℃-+50℃
|
|||
Safety load
|
120%F.S
|
|||
Ultimate load
|
150%F.S
|
|||
Recommended excitation voltage
|
5-12V
|
|||
Class of protection
|
IP66
|
