20T 30T 40T 50T compression load cell Column type weighing sensor for rail scale(CP-15K)

20T 30T 40T 50T compression load cell Column type weighing sensor for rail scale(CP-15K)
20T 30T 40T 50T compression load cell Column type weighing sensor for rail scale(CP-15K) 20T 30T 40T 50T compression load cell Column type weighing sensor for rail scale(CP-15K) 20T 30T 40T 50T compression load cell Column type weighing sensor for rail scale(CP-15K)

Large Image :  20T 30T 40T 50T compression load cell Column type weighing sensor for rail scale(CP-15K)

Product Details:
Place of Origin: China
Brand Name: OEM,ODM
Certification: ISO,OMIL
Model Number: SCS
Payment & Shipping Terms:
Minimum Order Quantity: 1
Packaging Details: The body of truck scale is nude packed and the accessories part are packed in wooden case
Delivery Time: within 2 weeks after payment
Payment Terms: 30% T/T in advance
Supply Ability: 100sets/month
Contact Now

20T 30T 40T 50T compression load cell Column type weighing sensor for rail scale(CP-15K)

Description
Description: South Ocean Sensitivity: 2.00+/_0.005
Model Number: CP-15K Creep: +/_0.02%FS
Zero Balance: +/_1.00%FS Output Resistance: 700+/_5

20T 30T 40T 50T compression load cell Column type weighing sensor for rail scale(CP-15K)


Product description and pictures

Suitable for electronic car scales. Using C3 column and bridge sensors, the resolution (Y value) can reach 14000. Strong overload capacity, with a destructive load of up to 300%; The protection level of the sensor is IP68/IP69K; According to the different needs of customers, sensors from well-known domestic and foreign brands can be equipped, with excellent anti bias load and anti impact structural design, automatic reset, and good repeatability stability.



materials
alloy steel;stainless steel
Sensitivity(mv/v)
2.00±0.005
nonlinearity
±0.02%FS
hysteresis
±0.02%FS
repeatability
±0.02%FS
creep(30minutes)
±0.02%FS
zero balance
±1.00%FS
temperature effect on zero
±0.02%FS/10℃
temperature effect on output
±0.02%FS/10℃
input resistance(Ω)
385±10
output resistance(Ω)
350±3
insulation resistance
≥5000MΩ
excitation voltage
10v(DC/AC)
compensated temperature range
-10℃~+50℃
operating temperature range
-20℃~+60℃
safe overload
120%FS
cable
φ5.4*16m

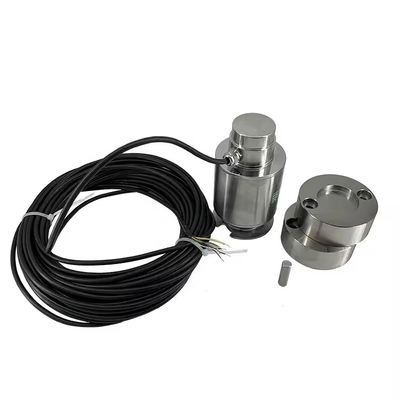

20T 30T 40T 50T compression load cell Column type weighing sensor for rail scale(CP-15K) 0



Features

1.Capacities 20T,30T,40T,50T

2.Electroless Nickel plated

3.Alloy steel and stainless steel

4.Easy installation

Applications
1.Electronic truck scale
2.Hopper scale

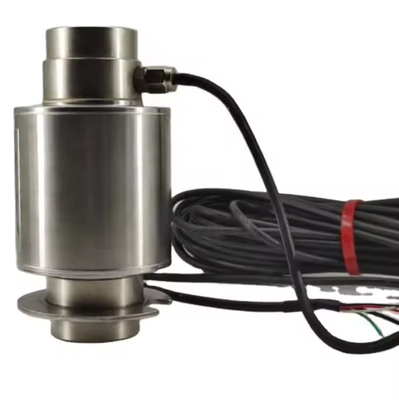

20T 30T 40T 50T compression load cell Column type weighing sensor for rail scale(CP-15K) 1

We have more than 20 years of experience in production, R & D and sales of weighing instruments, and we are still developing and innovating. Located in Chongqing, Southwest China, the company has a good industrial foundation and tradition. The company adheres to the good tradition of Seiko and meticulous work, strictly demands the quality of products, and wins customers with stable and reliable product quality.

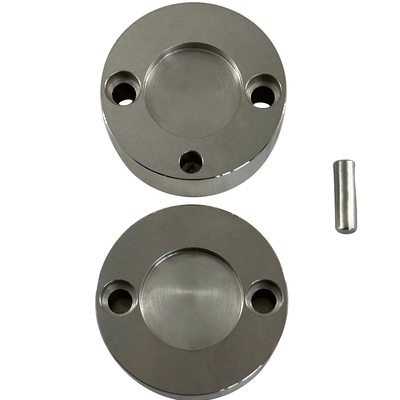

20T 30T 40T 50T compression load cell Column type weighing sensor for rail scale(CP-15K) 2
