Supports 3kg to 120kg capacity Precision load cell and weighing sensor weight cell single point load cell

Supports 3kg to 120kg capacity Precision load cell and weighing sensor weight cell single point load cell
Supports 3kg to 120kg capacity Precision load cell and weighing sensor weight cell single point load cell Supports 3kg to 120kg capacity Precision load cell and weighing sensor weight cell single point load cell Supports 3kg to 120kg capacity Precision load cell and weighing sensor weight cell single point load cell

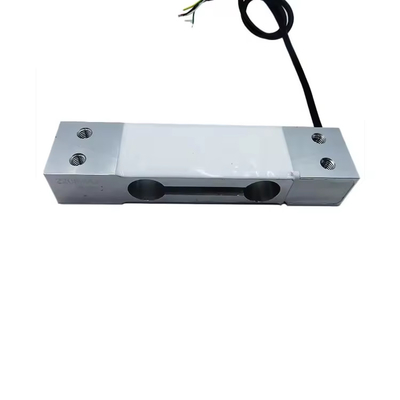

Large Image :  Supports 3kg to 120kg capacity Precision load cell and weighing sensor weight cell single point load cell

Product Details:
Place of Origin: China
Brand Name: OEM,ODM
Certification: ISO,OMIL
Model Number: SB
Payment & Shipping Terms:
Minimum Order Quantity: 1
Packaging Details: The body of truck scale is nude packed and the accessories part are packed in wooden case
Delivery Time: within 2 weeks after payment
Payment Terms: 30% T/T in advance
Supply Ability: 100sets/month
Contact Now

Supports 3kg to 120kg capacity Precision load cell and weighing sensor weight cell single point load cell

Description
Features: Small Size Description: Load Single Point Weighing
Aluminum Alloy: 2 MV/V Model Number: LP130
Size: 130*22*30mm Output Resistance: 350 2

Supports 3kg to 120kg capacity Precision load cell and weighing sensor weight cell single point loadcell


Product description and pictures

Load cells are used in smart devices, smart vending cabinets, smart garbage bins, weight detection equipment, etc., and are easy to install and operate.

Specifications
Rated Output
mv/v
2.0±0.2
Non-linearity
%F.S
0.03%F.S
Hysteresis
%F.S
0.03
Repeatability
%F.S
0.03
Creep
%F.S/3min
0.03
Temp.effect on zero
%F.S/10℃
0.03%F.S
Temp.effect on span
%F.S/10℃
0.05%F.S
Zero balance
mv/v
±0.05
Input impedance
Ω
405±6
Output impedance
Ω
350±5
Insulation resistance
MΩ
≥2000(100VDC)
Recommended excitation voltage
VDC
3~12
Allowed excitation voltage
VDC
3~12
Compensated temp.Range
℃
-10℃~+40℃
Operating temp.Range
℃
0℃~+40℃
Safe overload
%F.S
120
Ultimate Overload
%F.S
150
Connection
Excitation: Red:+ Black:-
Signal: Green:+ White:-

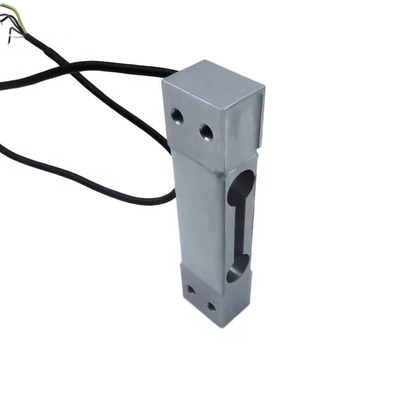

Supports 3kg to 120kg capacity Precision load cell and weighing sensor weight cell single point load cell 0

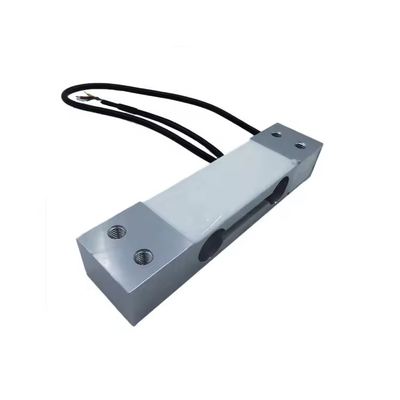

Supports 3kg to 120kg capacity Precision load cell and weighing sensor weight cell single point load cell 1

We have more than 20 years of experience in production, R & D and sales of weighing instruments, and we are still developing and innovating. Located in Chongqing, Southwest China, the company has a good industrial foundation and tradition. The company adheres to the good tradition of Seiko and meticulous work, strictly demands the quality of products, and wins customers with stable and reliable product quality.

Supports 3kg to 120kg capacity Precision load cell and weighing sensor weight cell single point load cell 2
