Product Details:
|
| Features: | Column Compression Type | Description: | Compression Load Cell 30t Alloy Steel Heavy Duty |
|---|---|---|---|
| Model Number: | BTY-MB | Type: | Load Cell |
| Use: | PRESSURE SENSOR | Protection Level:: | IP68 |

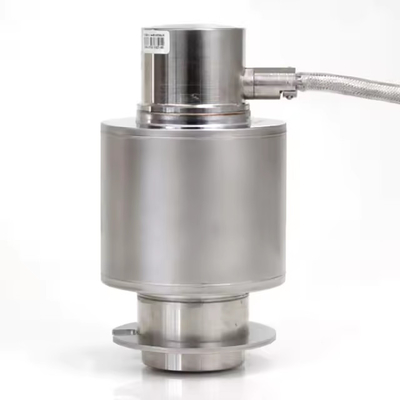

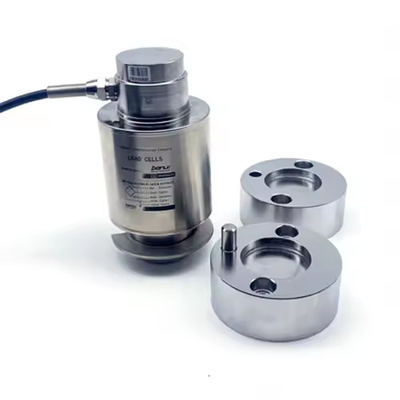

Suitable for electronic car scales. Using C3 column and bridge sensors, the resolution (Y value) can reach 14000. Strong overload capacity, with a destructive load of up to 300%; The protection level of the sensor is IP68/IP69K; According to the different needs of customers, sensors from well-known domestic and foreign brands can be equipped, with excellent anti bias load and anti impact structural design, automatic reset, and good repeatability stability.
|
Rated Capacity
|
10t, 20t,30t,40t, 50t, 60t
|
Capacidade
|
|
Full Scale Output
|
2.0mV/V ± 0.1%
|
Sensibilidade
|
|
Zero Balance
|
± 0.02mV/V
|
Balanco de zero
|
|
Non-linearity
|
< ± 0.023%F.S
|
Nao Linearidade
|
|
Repeatability
|
< ± 0.030%F.S
|
Repetibilidade
|
|
Hysteresis Error
|
< ± 0.030%F.S
|
Histerese erro
|
|
Creep in 30 minutes
|
< ± 0.030%F.S
|
Creep(30 minutos)
|
|
Input Resistance
|
780Ω ±5Ω
|
Impedancia de entrada
|
|
Output Resistance
|
702Ω ± 2Ω
|
Impedancia de saida
|
|
Recommended Excitation
|
10V (15V Maximum)
|
Tensao recomendata de excitacao
|
|
Insulation Resistance
|
> 5000MΩ (50V DC)
|
Resistencia de isolamento
|
|
Temperature Effect on Sensitivity
|
< ±0.0012% of Cn/k
|
Efeito da temp. na sensibilidade
|
|
Temperature Effect on Zero Balance
|
< ± 0.0040% of Cn/k
|
Efeito na temp. no zero
|
|
Working Temperature Range
|
-30°C to 70°C/-20°F to 160°F
|
Faixa de temp. operacao
|
|
Storage Temperature Range
|
-50°C to 85°C/-58°F to 185°F
|
Faixa de temp. homologada
|
|
Safe Overload
|
150%F.S
|
Sobrecarga segura
|
|
Breaking Overload
|
300%F.S
|
Sobrecarga maxima
|
|
Seal Type
|
Welded sealed
|
Tipo de sello
|
|
IP Rating
|
IP68
|
Grau de protecao
|
We have more than 20 years of experience in production, R & D and sales of weighing instruments, and we are still developing and innovating. Located in Chongqing, Southwest China, the company has a good industrial foundation and tradition. The company adheres to the good tradition of Seiko and meticulous work, strictly demands the quality of products, and wins customers with stable and reliable product quality.
