Product Details:
|
| Description: | Shear Beam Load Cell | Sensitivity: | 2 MV/V |
|---|---|---|---|
| Model Number: | PPM228-1A | Creep: | ±0.02%FS/30min |
| Zero Balance: | ±1%FS | Output Resistance: | 350±3Ω |

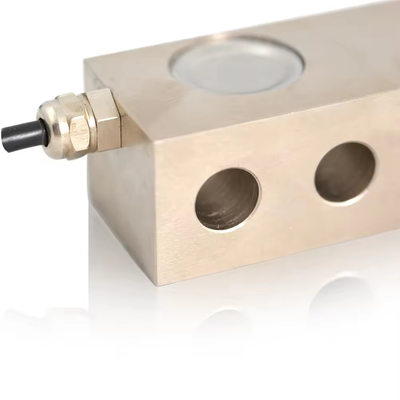

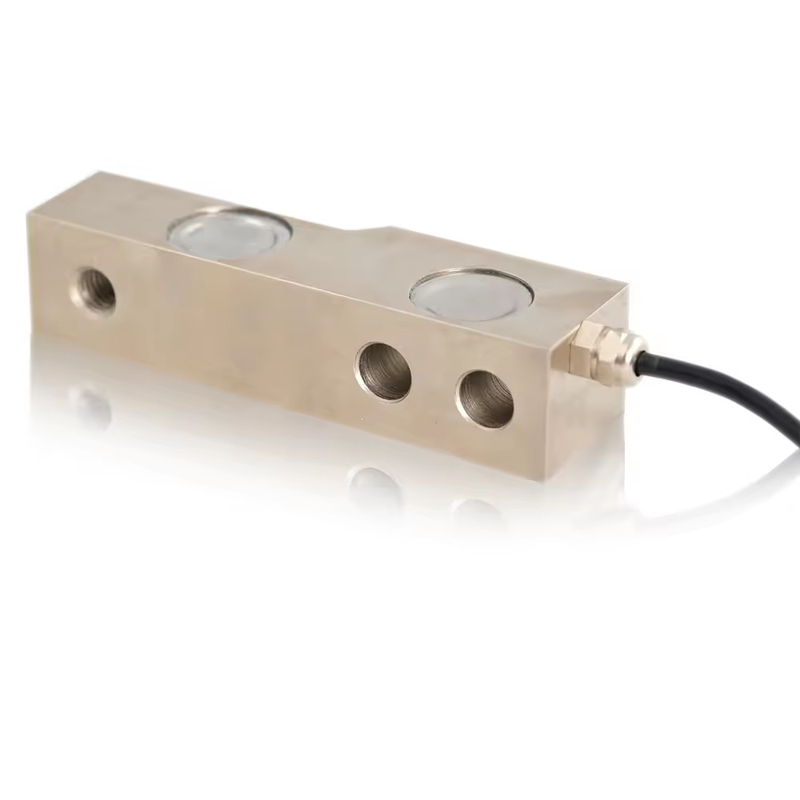

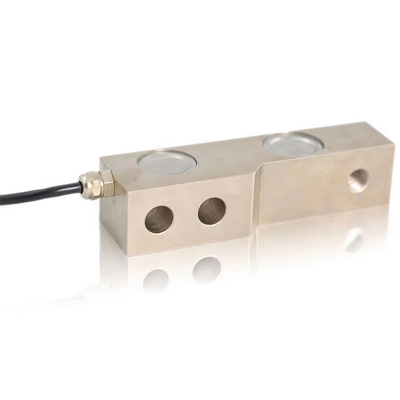

The PPM228-1A Shear Beam Load Cells are available in the capacities from 0.05t to 1t. Rugged all stainless steel construction and
high performance strain gauges assure superior linearity and stability.
|
Capability
|
0.05~20 t
|
|
Comprehensive precision
|
0.02%FS 0.03%FS
|
|
Sensitivity
|
2 mV/V
|
|
Creep
|
±0.02%FS/30min
|
|
Zero Output
|
±1%FS
|
|
Temperature effect on zero
|
±0.02%FS/10ºC
|
|
Temperature effect on output
|
±0.02%FS/10ºC
|
|
Operating temperature range
|
-20ºC~+65ºC
|
|
Input resistance
|
380±10Ω
|
|
Output resistance
|
350±3Ω
|
|
Insulation resistance
|
>5000MΩ
|
|
Safe overload
|
150%FS
|
|
Bridge voltage
|
10V DC
|
|
Material
|
Alloy or Stainless steel Stainless steel
|
|
Protection class
|
IP 67
|
|
Electronic connection
|
Input+: Red Input-:Black
Output+: Green Output-:White |
